News

21.07.2020

GTW1 of the 72 series has moved to its new location at WUMILA.

01.03.2020

Photos of GTW's 24, 25, 26 and 27 added. In February I was in Borken and photographed the old GTW 9.

29.06.2019

Information about the new operating system ETCS Level 3 added on the page

25.08.2019

GTW 12 got advertising for the FOM, and GTW 22 for the city savings bank.
GTW 6 has lost its Schäffler advertising.

29.06.2019

For the official farewell of the 72 series, the GTW 28 was parked today for the last time in the Vohwinkel car hall.

20.04.2019

GTW 27
first found a place in Bochum. But that should not be so.
A thank you to Gaby Schäfer for the photo

31.03.2019


New GTW 18 photographed From the family photo album I was able to digitize three photos of the accident on 11.09.1968 and show them here

24.02.2019

Of the decommissioned GTW's 3, 6, 7, 16, 17 and 24 I have the whereabouts and photos set.
The photo of the GTW 3 was provided to me by the Prüser Bus GmbH, the photo of the GTW 6 Mr. D. Möhrmann, one of the architects of the construction project Gleis 13 in Gütersloh.
Many thanks also at this point!
Photos of trains 12 and 13 have been added to the new GTW's.

14.08.2018

The car 5 of the production series 72 is exhibited in the Erlebnismuseum Sinsheim.
The museum kindly provided me with photos.
Many thanks !

08.07.2018

GTW 6 stood for one year with an advertisement for Schaeffler in the dare hall.
For a few days he is back in regular service and has now found his place here.

10.06.2018

Upload photos of the series 72 into the picture gallery:

GTW 25 has been running advertising for the 2018 "Schwebebahnlauf" since April 2018

The following photos have been added to the 15 series:

GTW 3 Weiterbildung WBS
GTW 9 BAYER AG

Die Wuppertaler Schwebebahn

The suspension railway is the most important personal local traffic system in Wuppertal, and at the same time the landmark of the town. It was the alternative at that time to an underground which could not be built in Wuppertal for geologic and topografischen reasons, therefore, the inhabitant of Cologne sugar manufacturer Eugene Langen got the possibility to realise his invention in Wuppertal.
Also the name "Suspension railway" comes from long themselves: „A system of the hanging carriages. "I have the thing‚ suspension railway‘ baptised. "“ such a quotation. Besides, the name Suspension railway is actually wrong because in contrast to a magnet suspension railway a constant contact exists between rail and vehicle. The Wuppertaler suspension railway is therefore an onerail overhead conveyor.
In 1995 one began in Wuppertal with a renewal project of the props, rails and stations and also the vehicles. The complete object was renewed as well as was altered up to three all stops and was modernised technically. On the from the 3rd to the 6th of April, 2014 one celebrated the official end of the removal. Since the 26th of May, 1997 the Wuppertaler suspension railway stands under conservation of monuments and historic buildings.

Current situation summer 2020


Schwebebahn only runs on weekends after the summer holidays.


After the summer holidays, the suspension railway only runs on Saturdays and Sundays. From Monday to Friday, the Wuppertaler Stadtwerke offer replacement bus transport. To these restrictions are expected to continue until summer 2021. The reason is new technical problems with the suspension railway vehicles. Since the introduction of the new railways four years ago, there have always been problems with the Kiepe Electric suspension railways. A new aspect is now forcing the WSW to act. As a result, atypical wear on the wheels since April has resulted in damage to the scaffolding. This was found during extensive inspections of the scaffolding in June.

In total, the error list of the new vehicles includes almost 200 technically different entries. As a result, at the end of the summer vacation there are no longer enough vehicles available. During the summer holidays, the suspension railway can only run every 6 minutes, after that it has to to protect the scaffolding, driving operations are to be comprehensively restricted.

Source: Press release from the Wuppertaler Stadtwerke on July 3rd, 2020

GTW 1
The GTW1 of the 72 series has found its location in front of the Wuppertaler Miniaturland in Oehder Str.
GTW 29
In Corona times, the suspension railway was also given its mouthguard.

ETCS Level 3


Since 02.09.2019 the monorail operates with the new operating system ETCS Level 3. It concerns thereby the train control system "ATLAS" of the company Alstom. The entire track, the new GTW and the Kaiserwagen were prepared for this.

Function:


Basically, the track occupancy message or the free message takes place only by a localization of the trains by radio. The current position is recorded over 256 Eurobalises, which are attached to the track. From this point of reference, the distance measuring system constantly determines the distance covered, thereby calculating a current location information of the vehicle at any time.
The speed of the tracks is detected by a Doppler radar. The antennas for position detection and for the speed are located on the first bogie of the train. This data is needed to monitor the maximum speed, the braking before bends and the stop of the train (station). Likewise, they are necessary to clear track sections. These data are sent to the control center via the Terrestrial Trunked Radio (TETRA) network available at the WSW.
Thus, the suspension railway comes without track and station signals. The track is divided into 39 sections in both directions, so it happens that one track has to stop in the middle of the track and wait until the next section is clear.
The introduction of the system is the prerequisite for the planned clock compression and thus a shortened travel time to 25 minutes from end to end station. In addition, the passenger information system receives its information about this.

GTW 12
GTW 12 mit FOM Werbung

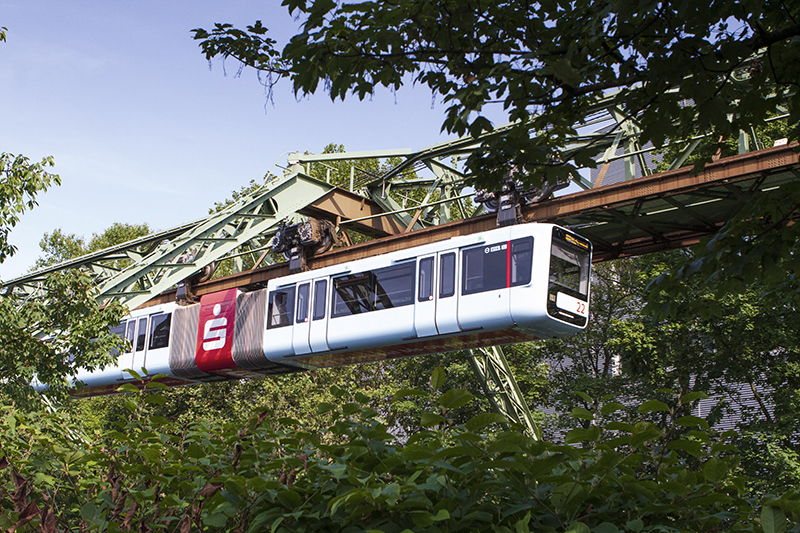

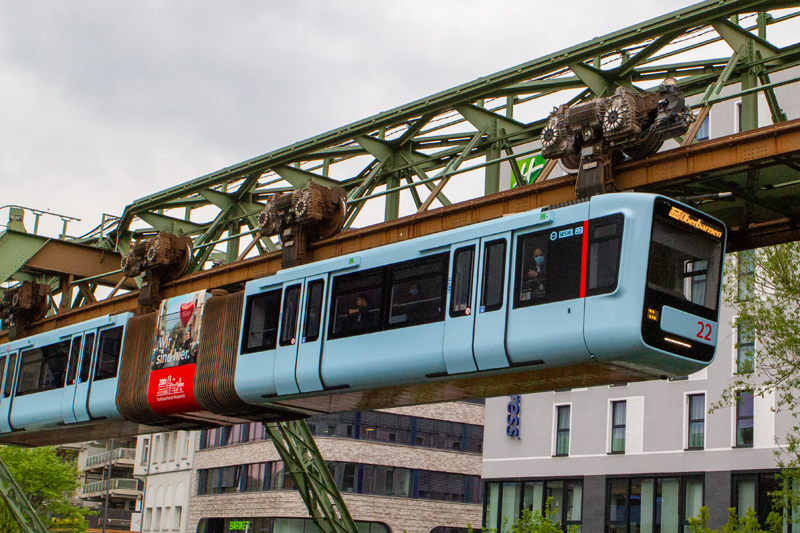

GTW 22
GTW 22 mit Werbung für die Stadtsparkasse

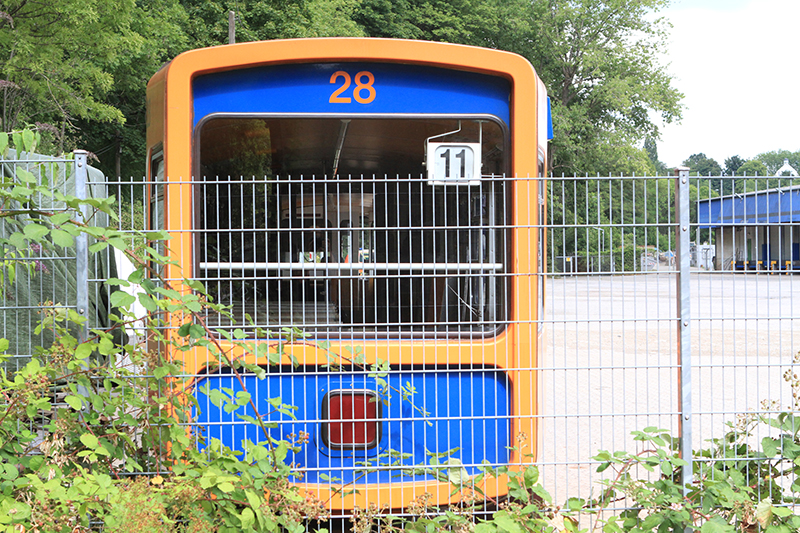

GTW 28

On 11.07.2019 the GTW 28 was transported to Utopia City. There it is first temporarily stored, before it will probably take its final place in the Utopia City in 2021. It will, at least that's the plan, be hung up and not stand on the ground.

GTW 28

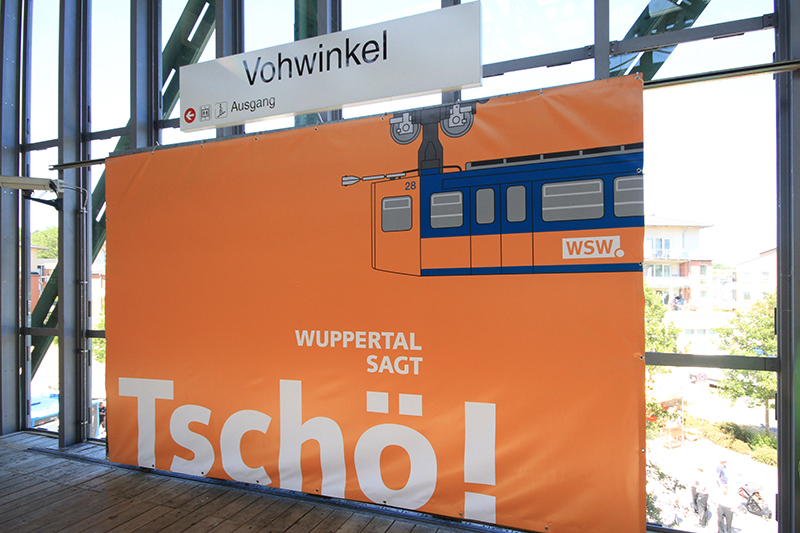

Farewell to the 72 series

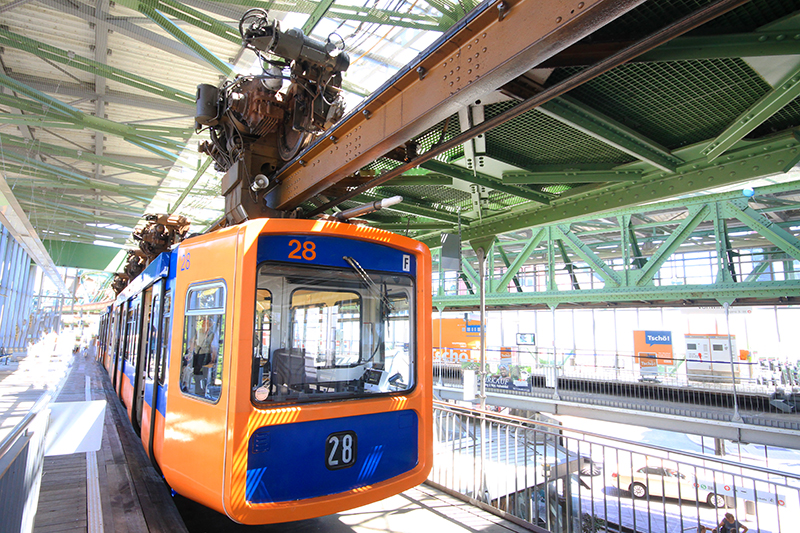

GTW 28
To say goodbye to the 72 series, the GTW 28 stood in the Station "Vohwinkel".


GTW 27
The GTW 27 has first found a home in Bochum

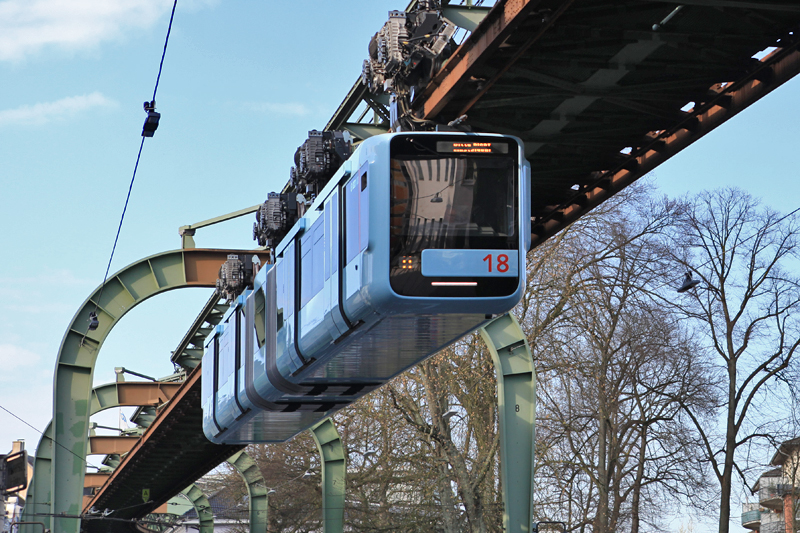

GTW 18
The new Gtw 18 on 30.03.2019 in Vohwinkel

Since 30.03.2019 the suspension railway is on the way again for test drives. In the next two weeks, the new vehicles and the operating system are tested and tested. that the track is back to normal in early August. The investigation into the accident in November are now set, the cause of the busbar demolition was not previously recognizable material wear.

Stromschienenabriss
Torn off conductor rail near the zoo / stadium station

After the demolition of the track in November 2018, our landmark stands still. Probably in August 2019 it goes back to normal operation. The reasons for the accident are now fixed. At the beginning, probably two holders of the busbar were defective, which was itself in this curve area under tension. This damaged further holders. Since the driving operation was still taking place at this time, pantographs of the first track were demolished and other brackets damaged, the next train passage then provided for the demolition of the busbar. Meanwhile, a new power rail is mounted, but on the entire route, the busbars are to be secured against another demolition.

In Vohwinkel, the exchange of old GTW's continues against the new railways.

Stromschienenabriss

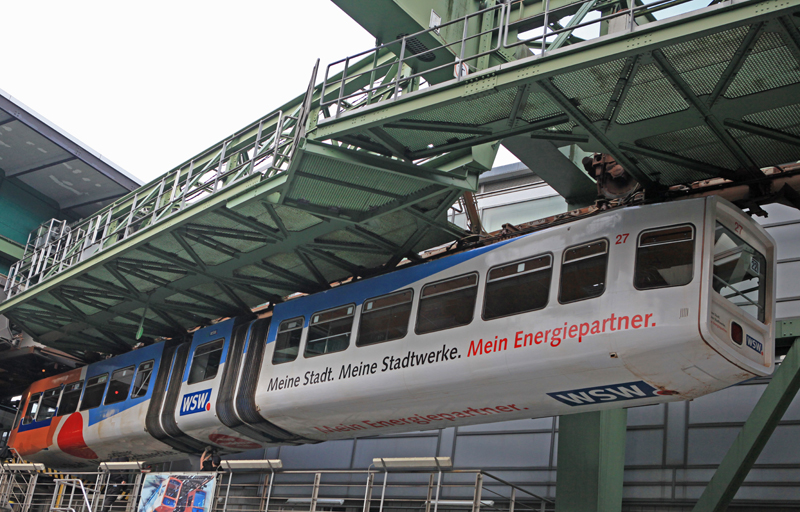

GTW 27 is being prepared for disassembly.
